Agent chat API

The agent chat API puts an agent behind any chat UI built on the AI SDK's useChat (UI message stream protocol v1). Each turn is one HTTP POST with your API key, answered as a server-sent event stream. The Ask AI panel on this site works this way.

It takes three steps:

1. Add the API to the agent.
2. Create a key limited to agent chat.
3. Post turns to the chat endpoint with the key.

Add the API to the agentCopy Anchor Link

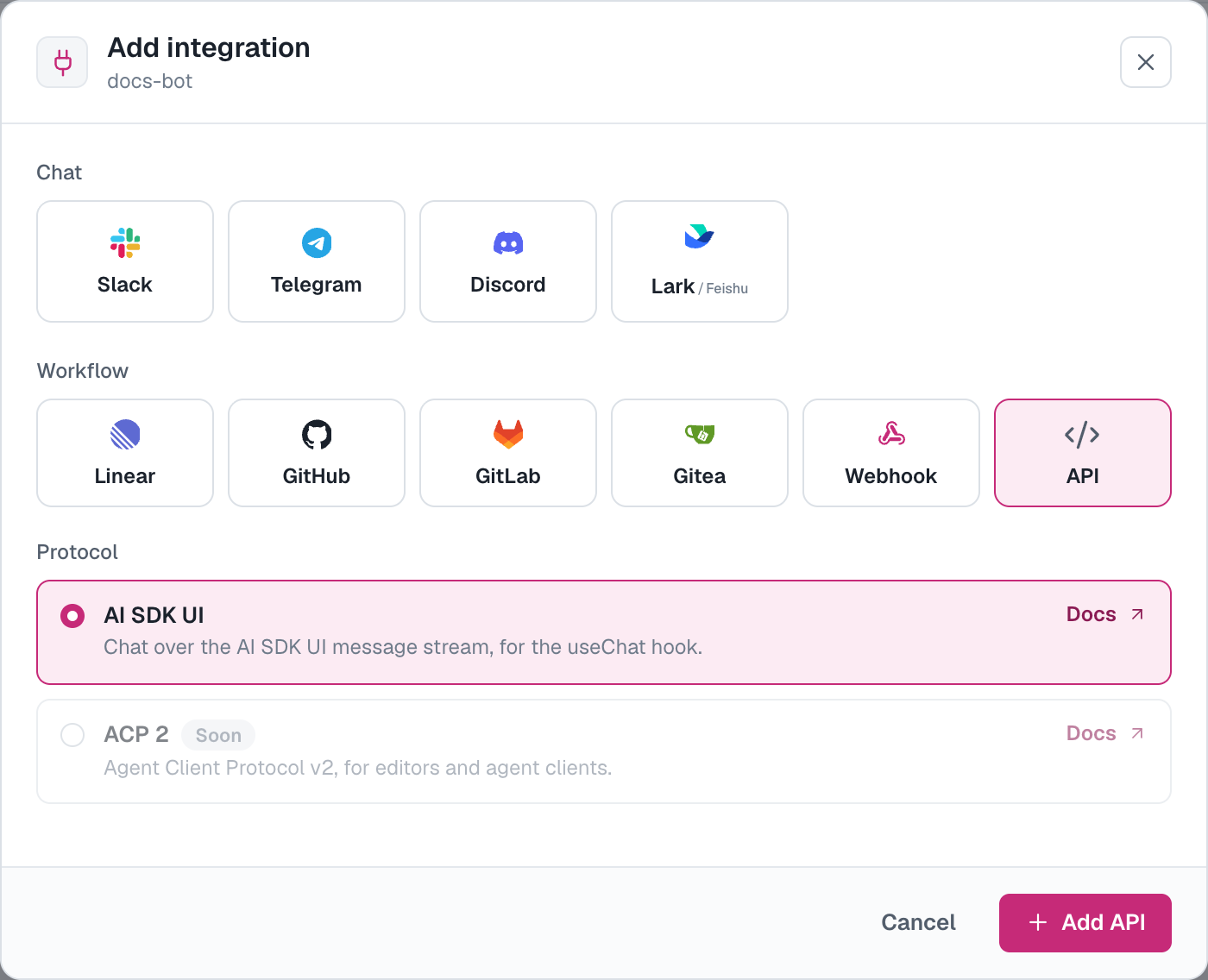

An agent accepts API calls only after its owner adds the API. Open the agent, then Integrations → Add integration, pick API under Workflow, choose AI SDK UI and click Add API.

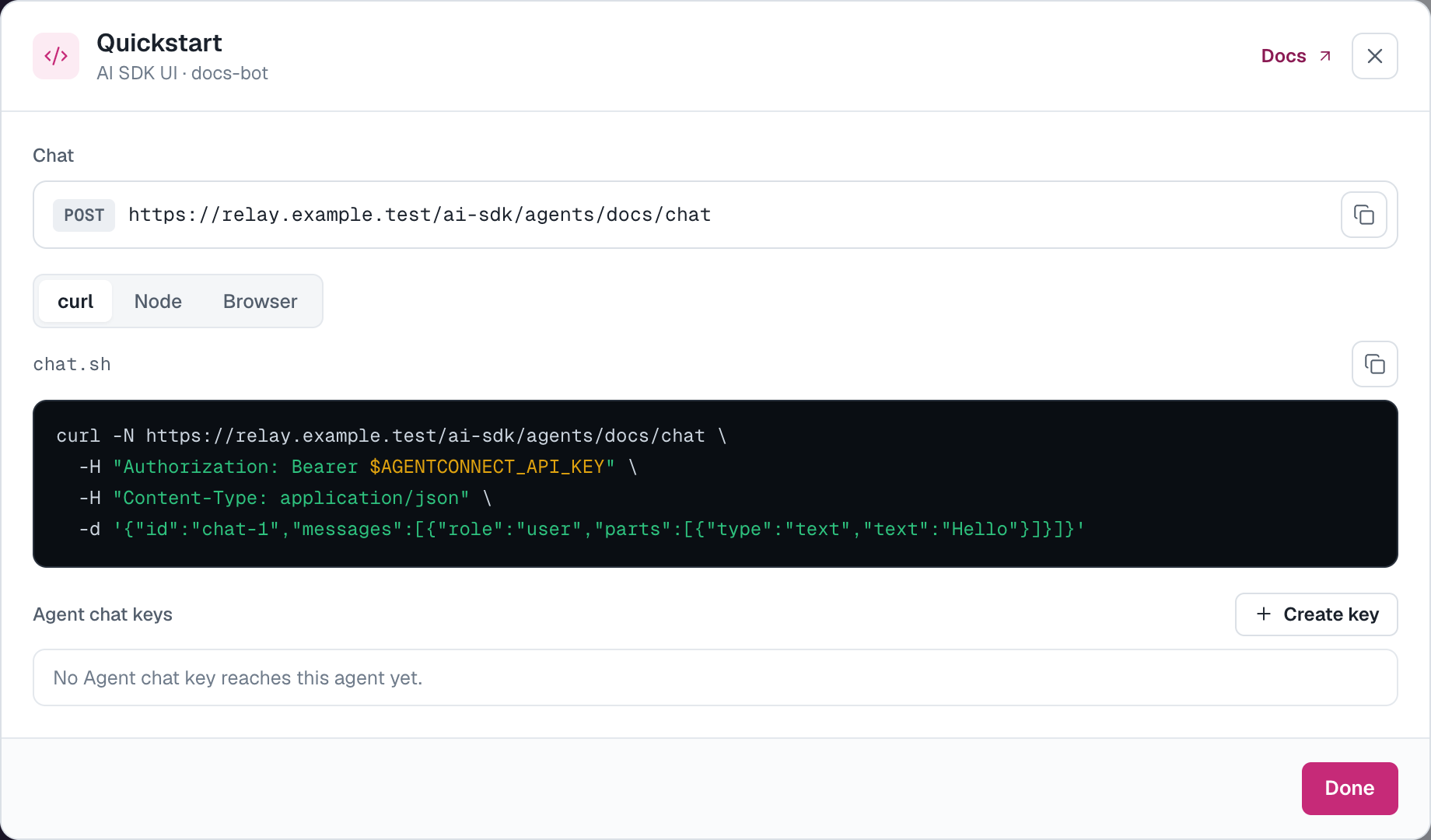

The agent's Integrations tab now shows an API card. Its Quickstart shows the chat endpoint for this agent, examples for curl, Node and the browser, and the keys that reach the agent. Removing the API stops the agent accepting calls within a minute; keys that cover it stay valid for other agents.

Create a keyCopy Anchor Link

Click Create key in the Quickstart, or create one for a service account under Settings → Service accounts → Keys, so it does not depend on any one person, or for yourself under Profile → API keys. Either way:

• Permission: Agent chat.
• Agents: Selected agents, then pick the agent.

An Agent chat key works only on the chat endpoint, and only for the selected agents that have added the API; the Control Plane's REST API refuses it. Like any API key, it is shown once and expires after 90 days by default. Revoking it stops it within a minute.

Send a turnCopy Anchor Link

Copy the chat endpoint from the Quickstart. Send POST to it with Authorization: Bearer <key> and the useChat request body ({ id, messages, trigger, … }):

curl -N "$CHAT_URL" \
  -H "Authorization: Bearer $AGENTCONNECT_API_KEY" \
  -H "Content-Type: application/json" \
  -d '{"id":"chat-1","messages":[{"id":"m1","role":"user","parts":[{"type":"text","text":"How do I install the daemon?"}]}]}'

The chat endpoint is <relay-url>/ai-sdk/agents/<agent-id>/chat. On AgentConnect OSS, the relay URL is your relay's public URL.

The body's id, 1 to 128 characters, names the conversation:

• The first turn with a new id opens a conversation; the same id continues it. useChat generates an id per chat and sends it on every turn.
• Conversations belong to the key's owner. The same id sent with another member's key is a different conversation.
• The relay reads only the text parts of the last user message. The agent's session already holds the history, so earlier messages, file parts and data-* parts are ignored. A request whose last message answers the agent's questions continues its turn instead; see Questions and approvals.

The response is text/event-stream with the header x-vercel-ai-ui-message-stream: v1. Its parts follow the AI SDK protocol, and the stream ends with [DONE].

• A turn can run for minutes. A keepalive comment arrives every 15 seconds.
• A request body may be up to 4 MiB, and a turn's text up to 128 KiB.
• One turn runs at a time in a conversation.

Refusals arrive as a status before any stream, with a JSON body whose reason names the machine-readable cause where there is one:

What the stream carriesCopy Anchor Link

A client that renders only text shows only the reply. stop() in useChat aborts only the fetch: the turn still finishes, and its output lands in the session's transcript in the console. An interrupted stream cannot be resumed yet.

Questions and approvalsCopy Anchor Link

A turn can stop on something only the caller can answer: the agent asks a question, or a tool it wants to run needs approval. The stream hands it over as a tool call, a dynamic-tool part, and ends with the finish reason tool-calls. The turn waits for the answer.

Send the answer as the next request. useChat does that on its own with sendAutomaticallyWhen set to lastAssistantMessageIsCompleteWithToolCalls or lastAssistantMessageIsCompleteWithApprovalResponses. The relay continues the same turn, and the rest of the reply streams into the same assistant message. Each tool call's callProviderMetadata names the turn it belongs to, so send the assistant message back as the stream built it.

A refused approval takes effect at once, and the agent's editors never see it. A granted one takes effect when the key's owner could approve it in the console: a Full access key whose owner can edit the agent. Granted with any other key, it goes to the agent's editors to approve in the console, and the turn waits for them. A public site can refuse every approval in code, so its visitors never reach the editors; this site's Ask AI panel does.

A turn does not wait forever:

• Left unanswered for 10 minutes, it is cancelled.
• A new message instead of an answer cancels it, and the message starts a turn of its own.
• An answer to a turn that has already ended gets 409 with turn_ended.

From NodeCopy Anchor Link

The AI SDK's DefaultChatTransport sends turns and parses the stream. It needs AI SDK 6 or later (npm i ai):

import { DefaultChatTransport } from 'ai'

const transport = new DefaultChatTransport({
  api: process.env.CHAT_URL,
  headers: { Authorization: `Bearer ${process.env.AGENTCONNECT_API_KEY}` }
})
const stream = await transport.sendMessages({
  trigger: 'submit-message',
  chatId: 'chat-1', // the conversation; send the same id again to continue it
  messageId: undefined,
  abortSignal: undefined,
  messages: [{ id: '1', role: 'user', parts: [{ type: 'text', text: 'How do I install the daemon?' }] }]
})
for await (const chunk of stream) if (chunk.type === 'text-delta') process.stdout.write(chunk.delta)

From a browserCopy Anchor Link

A browser must not hold the key, so put a route on your own server in front of the chat endpoint. It adds the key and forwards useChat's request unchanged. A Next.js route handler, app/api/chat/route.ts:

export async function POST(req: Request) {
  const upstream = await fetch(process.env.CHAT_URL!, {
    method: 'POST',
    headers: { Authorization: `Bearer ${process.env.AGENTCONNECT_API_KEY}`, 'Content-Type': 'application/json' },
    body: await req.text(),
    signal: req.signal
  })
  return new Response(upstream.body, {
    status: upstream.status,
    headers: { 'Content-Type': 'text/event-stream', 'x-vercel-ai-ui-message-stream': 'v1' }
  })
}

On the page, point useChat at it (ai and @ai-sdk/react, AI SDK 6 or later):

'use client'
import { useChat } from '@ai-sdk/react'
import { DefaultChatTransport } from 'ai'

export default function Chat() {
  const { messages, sendMessage } = useChat({ transport: new DefaultChatTransport({ api: '/api/chat' }) })
  // Render messages, and call sendMessage({ text }) on submit.
}

Every visitor's conversations belong to the key's owner, and a visitor reaches only the conversations its own chat ids name; useChat's ids are random. Rate-limit visitors on your route, since AgentConnect limits turns per conversation, not per visitor.

This site's own route, in the agentconnect-md/docs repository, goes further: it chooses the chat id itself and keeps it in an HttpOnly cookie per open tab, and starts a new conversation when the panel is cleared. See lib/ask-ai.ts.

Gate turns by a DecisionCopy Anchor Link

The API card's Add decision gives the API the same rules a channel's By decision has: the agent answers a call only when the Decision matches the call's message, and the endpoint answers 422 otherwise. A call whose Decision cannot be evaluated is answered as if there were no gate. Recent evaluations in the rules shows each call the gate judged and why; only members who can edit the agent see it.

Sessions and safetyCopy Anchor Link

A conversation opened this way is an ordinary webchat session of the key's owner, and its source shows the key. A service account's session is visible to the whole organization; a personal key's is private to that user. Its usage is metered on the agent like any other turn; see Billing & usage.

TroubleshootingCopy Anchor Link

• 403 "this agent does not accept API calls": add the API to the agent (above).
• 403 "this API key cannot chat with agents": the key's permission is Read-only. Create an Agent chat key.
• 404 "agent not found": the key's agent selection does not include this agent.
• 409 on a turn: a turn is still running in this conversation. Wait for it to finish, or use a new chat id.
• 409 turn_ended on an answer: the turn waited 10 minutes without one, or a new message replaced it. Ask again in a new message.
• 503 right after a deployment: the agent's daemon is reconnecting. Retry.
